1.8M F16
$150.00

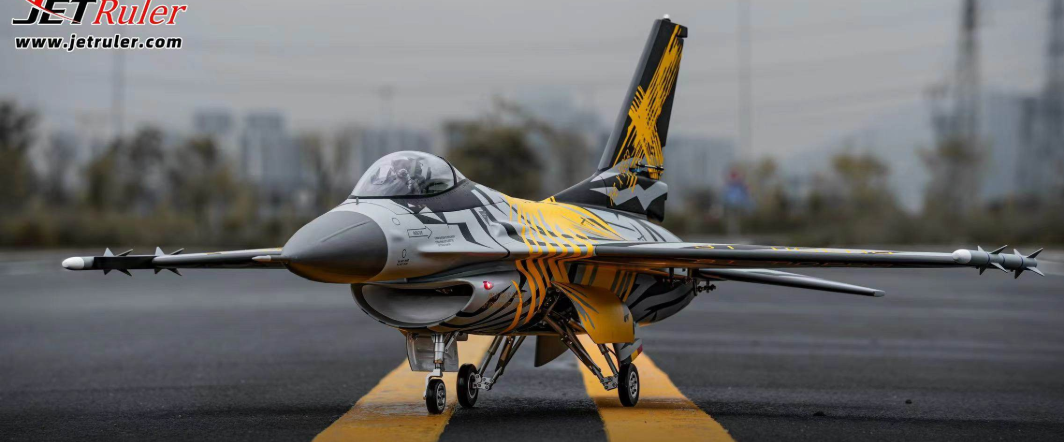

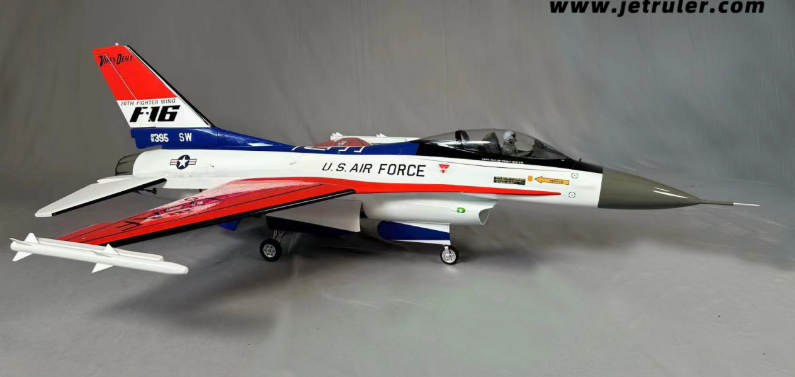

JET Ruler is very pleased to announce the production of what is one of aviations most epic aircraft ever, the General Dynamics F16 Fighting Falcon.
We wanted this one to go above and beyond as a beautiful scale model. We found ways to make it reliable and tough enough to actually be flown on a regular basis, and not a problem to transport or put together, all in a package that fly’s brilliantly well.
This 1/8 scale version has been designed with an improved wing area, to provide better performance and flight characteristics.
Description
SPECIFICATIONS:
Model: 1.8M F16
Wingspan: 52.9″ (1344mm)
Length: 71.3″ (1810mm) – Plus pitot tube
Weight: 17.8lbs (7.85kg)
BASIC SETUP:
Control throws:
Aileron: 10mm up / 10mm down – 40% Expo
Measured from the wingtip
Rudder: 35mm left / 35mm right – 50% Expo
Elevator: 40mm up / 40mm down – 45% Expo
Measured from the front of the leading edge of the elevator.
The CG is 148mm from the front leading edge on the root of the wing (Factory Settings)
FEATURES:
Full composite construction, lightweight and strong
Painted outside the mold so no seam lines
Easily detachable ventral fins, helps in place with just two screws
INCLUDED HARDWARE:
Complete air frame (including fibreglass control horns)
Carbon fibre wing-tubes
Servo extension leads
Fixed Dual wall thrust pipe (for 60-100N turbines)
Fuel tank (2000ml)
Pre-prepared pushrods with ball links
Pre-glued control horns
OPTIONAL EXTRAS:
Simulate fighter cockpit
Light system
PNP and installation service
REQUIRED HARDWARE:
Turbine: 60-100N
Servos: x9
x5 middle size servo, 35 x 15 x 30mm (minimum 16kg) // Uses x1 per aileron, x1 per elevator, x1 on rudder
x4 middle size servo, 35 x 15 x 30mm (minimum 10kg) // Uses x3 for gear doors and x1 for steering
Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories
